• Air conditioning, single-zone manual
• Assist handle, front passenger
• Defogger, side windows
• Headliner, cloth, over driver and passenger
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, padded
• Warning tones, headlamp on and key-in-ignition

• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Rear wheel drive
• Steering, power
• Suspension, rear hypoid drive axle with multi-leaf springs

• Daytime Running Lamps

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan
• digital clock and 2 front door speakers

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS, ADJUSTABLE

• with head restraints and vinyl or cloth trim (STD)

VISORS, DRIVER AND FRONT PASSENGER, VINYL

• in lieu of standard cloth.

SEATS, FRONT BUCKET WITH VINYL TRIM

• and outboard head restraints (STD)

BODY, STANDARD

• (STD)

PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

DOOR, SWING-OUT PASSENGER-SIDE, 60/40 SPLIT

• (STD)

TRIM PANELS, HINGED REAR SIDE DOORS AND HINGED REAR DOORS

• (STD)

TRANSMISSION, 4-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive
• tow/haul mode and internal transmission oil cooler (STD)

WHEELS, GRAY-PAINTED

• includes Gray center caps and steel spare (STD)

ENGINE, VORTEC 4.8L V8 SFI

• (279 hp [208 kW] @ 5200 rpm
• 294 lb-ft of torque [400 N-m] @ 4500 rpm) (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

TIRE, SPARE LT245/75R16E ALL-SEASON, BLACKWALL, LOCATED AT REAR UNDERBODY OF VEHICLE

• (STD)

• AUDIO SYSTEM AM/FM STEREO with seek-and-scan digital clock and 2 front door speakers
• REAR AXLE 3.73 RATIO
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS ADJUSTABLE with head restraints and vinyl or cloth trim (STD)
• VISORS DRIVER AND FRONT PASSENGER VINYL in lieu of standard cloth.
• MEDIUM PEWTER CUSTOM VINYL SEAT TRIM
• SEATS FRONT BUCKET WITH VINYL TRIM and outboard head restraints (STD)
• BODY STANDARD (STD)
• PREFERRED EQUIPMENT GROUP includes Standard Equipment
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• TRIM PANELS HINGED REAR SIDE DOORS AND HINGED REAR DOORS (STD)
• GLASS FIXED REAR DOORS
• TRANSMISSION 4-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive tow/haul mode and internal transmission oil cooler (STD)
• PAINT SOLID
• WHEELS GRAY-PAINTED includes Gray center caps and steel spare (STD)
• ENGINE VORTEC 4.8L V8 SFI (279 hp [208 kW] @ 5200 rpm 294 lb-ft of torque [400 N-m] @ 4500 rpm) (STD)
• GLASS FIXED REAR DOORS WINDOWS
• SUMMIT WHITE
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL LOCATED AT REAR UNDERBODY OF VEHICLE (STD)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Intermittent Wipers
• Vinyl Seats
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Immobilizer
• Power Outlet
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Dual Swing-out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 2935
• Curb Weight - Rear (lbs): 2226
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 960
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XHH
• Rear Tire Order Code: YHH
• Spare Tire Order Code: ZHH
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x - TBD -
• Rear Wheel Size (in): 16 x - TBD -
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr-Assisted
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: LH Midship Inboard
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 81.6
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.7
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 7.6
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0

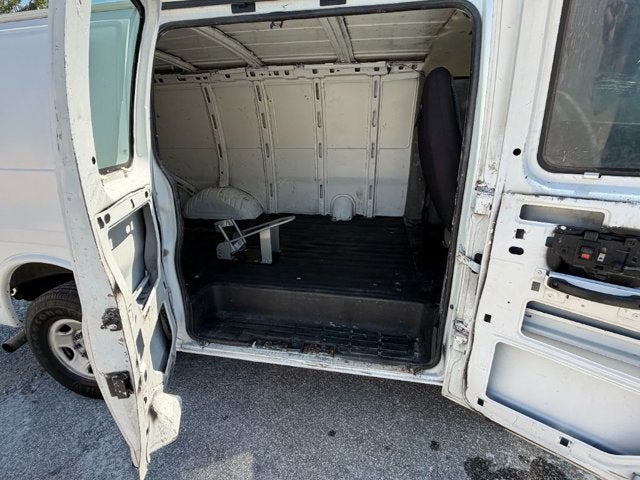

• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.1
• Step Up Height - Side (in): 20.9

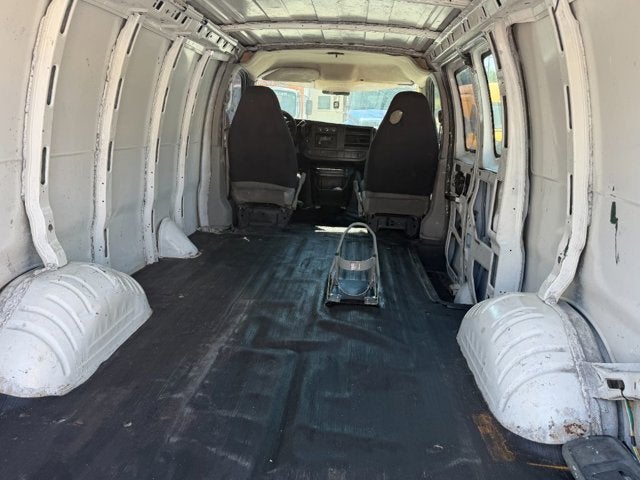

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 127.8
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume (ft³): 225.1
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary

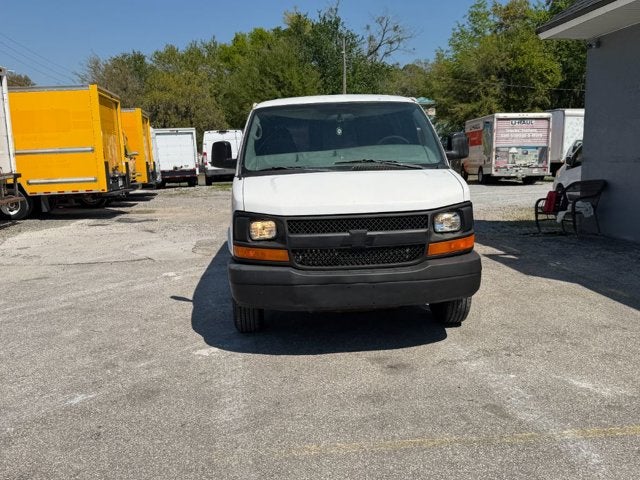

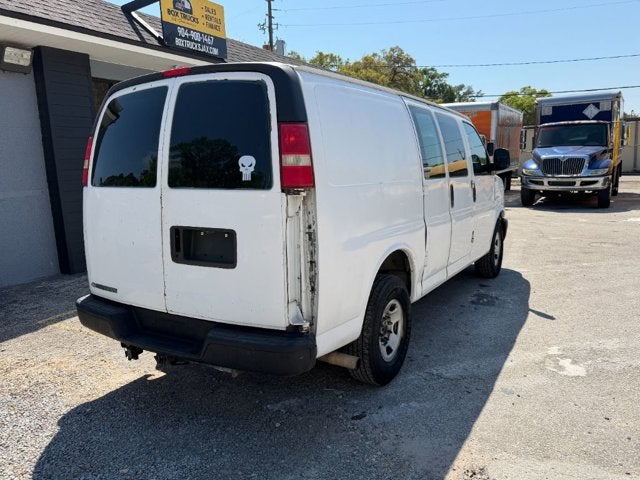

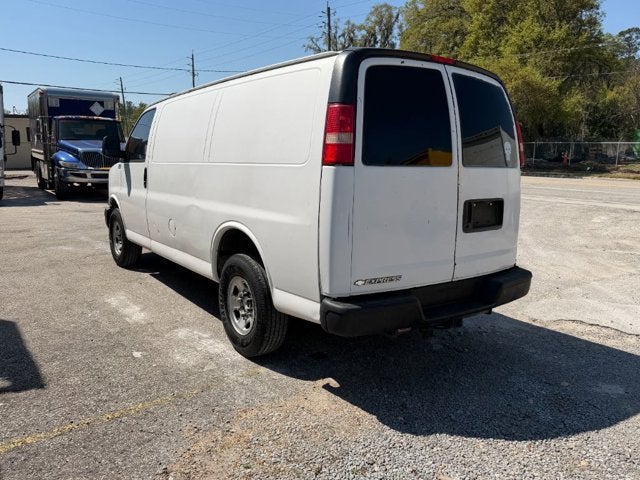

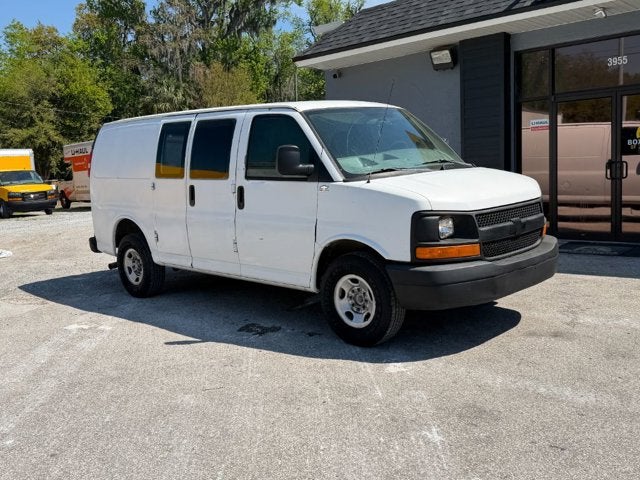

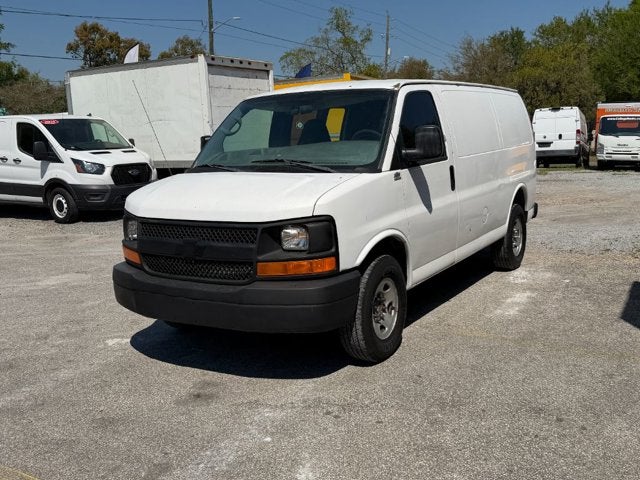

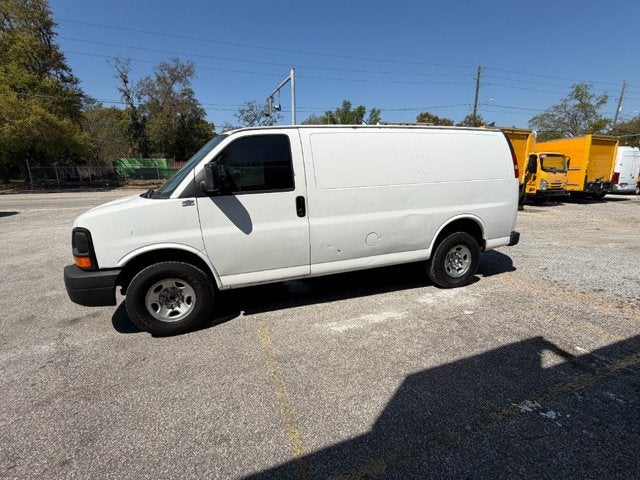

• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: 2500 Cargo Van 135" WB
• Body Code: ZW9
