• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Warning tones, headlamp on and key-in-ignition

• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)

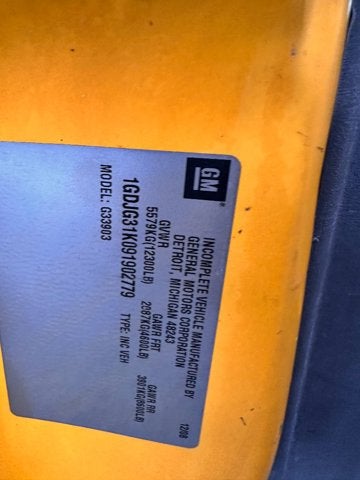

• Incomplete vehicle certification
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

GOVERNOR, ELECTRONIC SPEED SENSOR SET TO 75 MPH

• Electronic software to facilitate a 75 MPH maximum road speed governor. Governor speed label provided

WHEELS, 6 - 16" X 6.5" (40.6 CM X 16.5 CM) GRAY-PAINTED STEEL (DUAL REAR)

• (Standard on the *G33803 and *G33903 models. On the *G33503 model
• included and only available with (C7A) 10
• 000 lbs. (4536 kg.) GVWR or (C7N) 12
• 300 lbs. (5579 kg.) GVWR. Not available with (XHH) front LT245/75R16E all-season blackwall tires
• (YHH) rear LT245/75R16E all-season blackwall tires
• (ZHH) spare LT245/75R16E all-season blackwall tires or (R04) single rear
• 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

GVWR, 12,300 LBS. (5579 KG)

• (STD) (Includes (R05) dual rear
• 6 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels on the *G33503 model. Not available with (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.

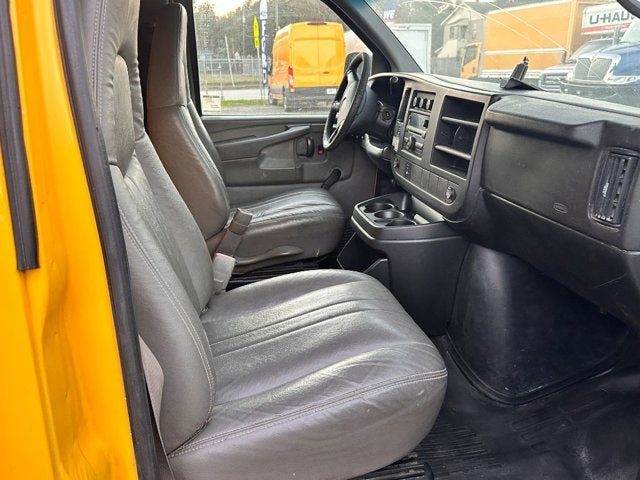

SEATS, FRONT BUCKET WITH VINYL TRIM AND OUTBOARD HEAD RESTRAINTS

• (STD)

TRANSMISSION, 4-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive
• tow/haul mode and internal transmission oil cooler (STD) (Not available with (LMM) Duramax 6.6L Turbo Diesel V8 engine. Reference the Engine/Axle page for availability.)

BODY, STANDARD

• (STD)

1WT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

TIRE VALVE STEMS, LONG, BRASS, FOR INSIDE DUAL REAR WHEELS

• Brass metal 3-3/8" long valve stems on the inner wheels of dual rear wheel axles for easy air inflation. Includes SEO (Q8C) air-thru valve caps.

VISORS, DRIVER AND FRONT PASSENGER, VINYL

• in lieu of standard cloth

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET, ADJUSTABLE

• includes head restraints and vinyl or cloth trim (STD)

ENGINE, VORTEC 6.0L V8 SFI

• (323 hp [240.8 kW] @ 4600 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD)

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select and 2 front door speakers

TIRE VALVE STEM CAPS, AIR THRU

• Air through valve caps on the tire air valves

TIRE VALVE STEMS, BRASS IN LIEU OF STANDARD

• Also included on spare when furnished

• GOVERNOR ELECTRONIC SPEED SENSOR SET TO 75 MPH Electronic software to facilitate a 75 MPH maximum road speed governor. Governor speed label provided
• WHEELS 6 - 16" X 6.5" (40.6 CM X 16.5 CM) GRAY-PAINTED STEEL (DUAL REAR) (Standard on the *G33803 and *G33903 models. On the *G33503 model included and only available with (C7A) 10 000 lbs. (4536 kg.) GVWR or (C7N) 12 300 lbs. (5579 kg.) GVWR. Not available with (XHH) front LT245/75R16E all-season blackwall tires (YHH) rear LT245/75R16E all-season blackwall tires (ZHH) spare LT245/75R16E all-season blackwall tires or (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)
• REAR AXLE 4.10 RATIO
• GVWR 12 300 LBS. (5579 KG) (STD) (Includes (R05) dual rear 6 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels on the *G33503 model. Not available with (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.
• SPECIAL PAINT SOLID ONE COLOR
• SEATS FRONT BUCKET WITH VINYL TRIM AND OUTBOARD HEAD RESTRAINTS (STD)
• TRANSMISSION 4-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive tow/haul mode and internal transmission oil cooler (STD) (Not available with (LMM) Duramax 6.6L Turbo Diesel V8 engine. Reference the Engine/Axle page for availability.)
• BODY STANDARD (STD)
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).
• 1WT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• MEDIUM PEWTER VINYL SEAT TRIM
• TIRE VALVE STEMS LONG BRASS FOR INSIDE DUAL REAR WHEELS Brass metal 3-3/8" long valve stems on the inner wheels of dual rear wheel axles for easy air inflation. Includes SEO (Q8C) air-thru valve caps.
• VISORS DRIVER AND FRONT PASSENGER VINYL in lieu of standard cloth
• FUEL FILL CAP WITH STAINLESS STEEL TETHER IN LIEU OF THE STANDARD PLASTIC TETHER
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGHBACK BUCKET ADJUSTABLE includes head restraints and vinyl or cloth trim (STD)
• ENGINE VORTEC 6.0L V8 SFI (323 hp [240.8 kW] @ 4600 rpm 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD)
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• SPECIAL PAINT
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER seek-and-scan digital clock TheftLock random select and 2 front door speakers
• TIRE VALVE STEM CAPS AIR THRU Air through valve caps on the tire air valves
• COOLANT RECOVERY BOTTLE WITH NO-LOSS TETHERED CAP
• TIRE VALVE STEMS BRASS IN LIEU OF STANDARD Also included on spare when furnished
• WHEEL FINISH PAINTED WHITE.
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Dual Rear Wheels
• Intermittent Wipers
• Daytime Running Lights
• Vinyl Seats
• Bucket Seats
• Bucket Seats
• A/C
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 8600
• Curb Weight - Front (lbs): 2937
• Curb Weight - Rear (lbs): 1958
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Gross Combined Wt Rating (lbs): 16000
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: XEC
• Rear Tire Order Code: YEC
• Front Tire Size: LT215/85R16E
• Rear Tire Size: LT215/85R16E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 177.0
• Length, Overall w/o rear bumper (in): 284.8
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 82.9
• Overhang, Front (in): 39.7
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 98.7
• Cab to Axle (in): 118.0
• Cab to End of Frame (in): 186.5
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.8
• Ground Clearance, Front (in): 7.6
• Ground Clearance, Rear (in): 7.0
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary

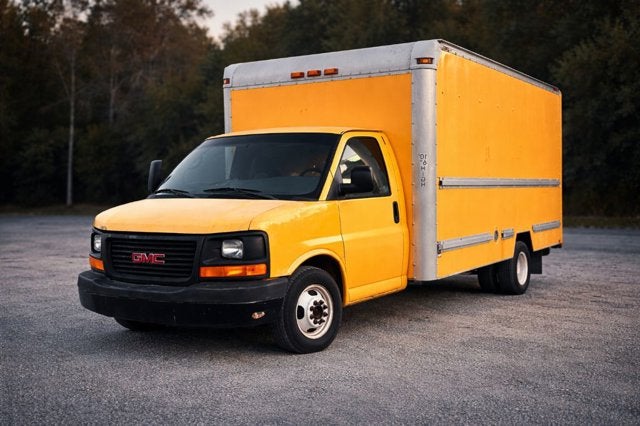

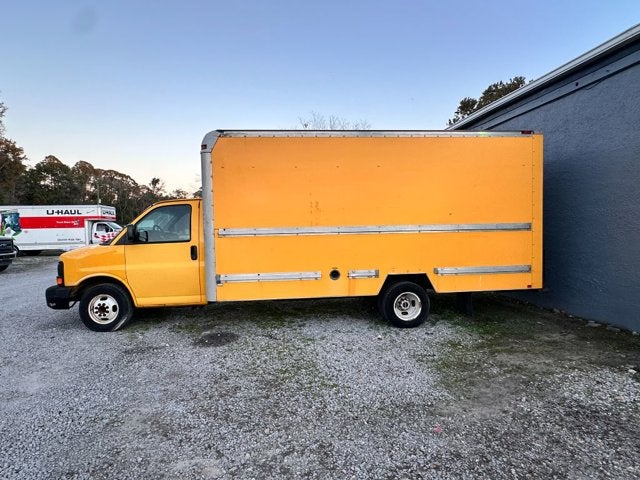

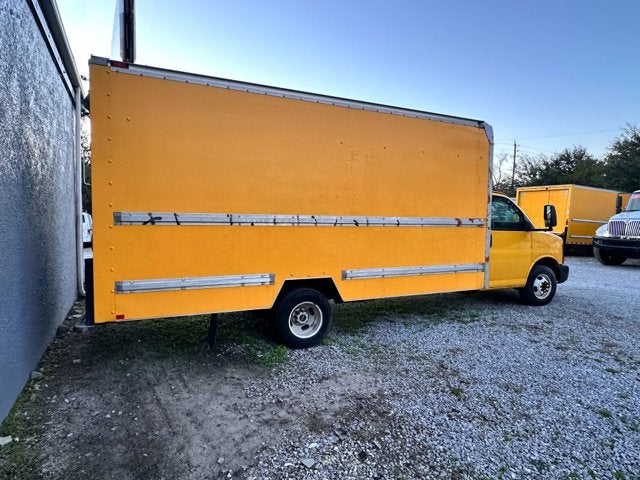

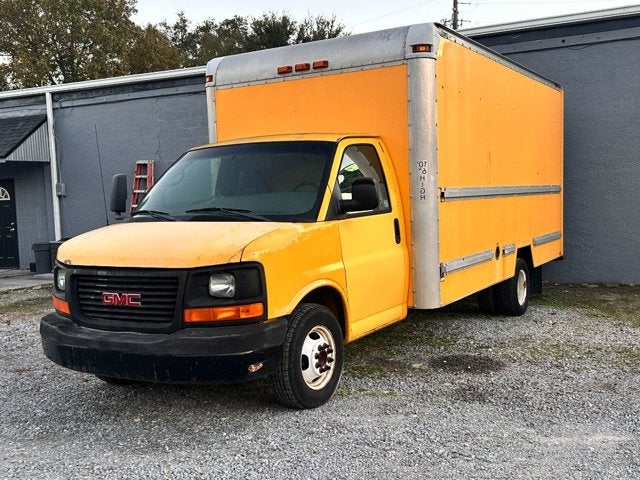

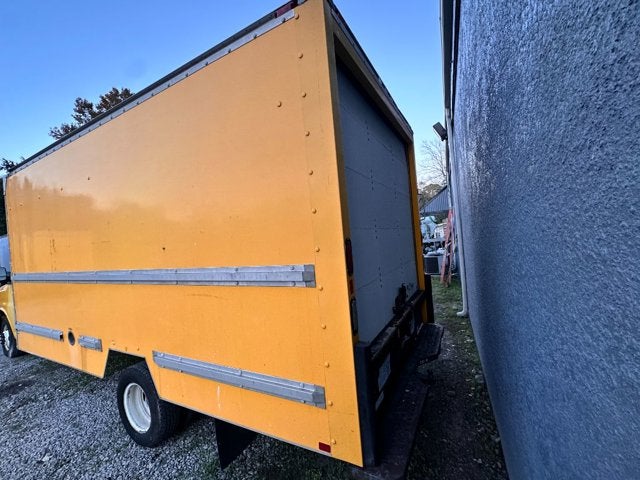

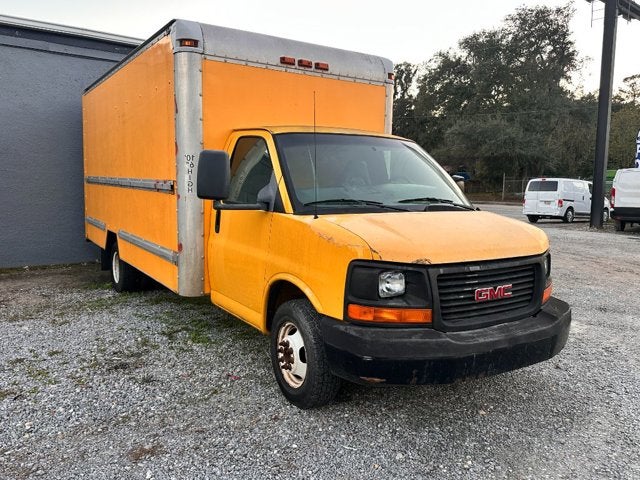

• Vehicle Name: GMC Savana Cutaway
• Body Style: 177.0" WB
• Body Code: ZW9
