Recent Price Drop!
Reduced by $2,000 since Jan 12, 2026

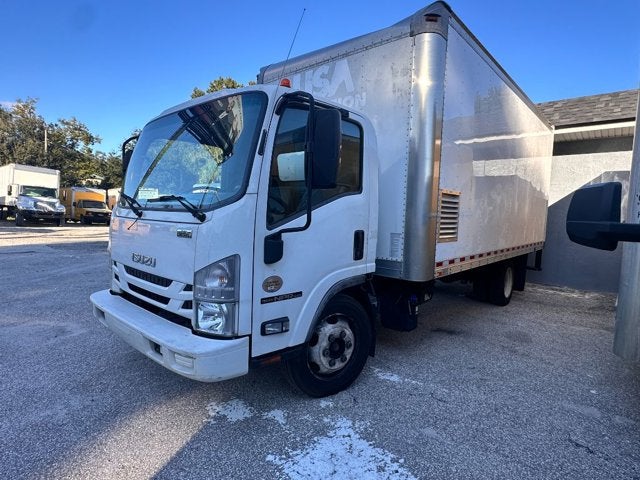

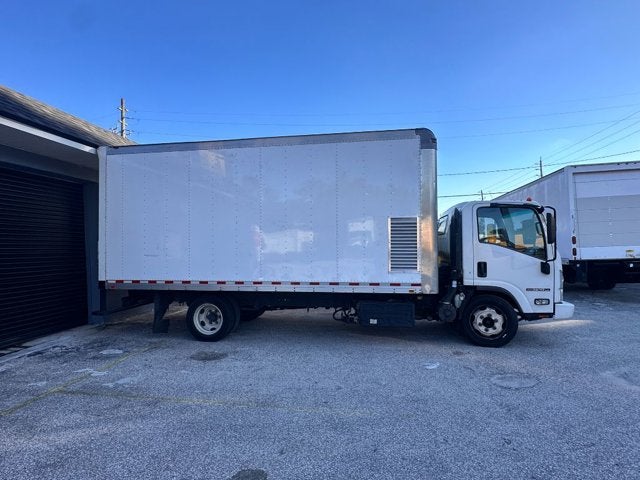

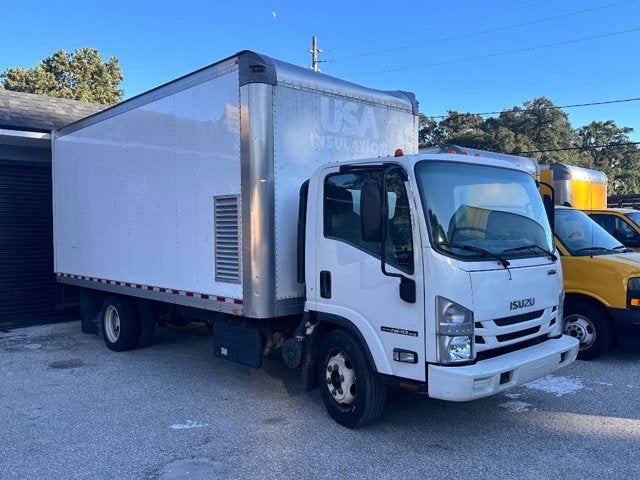

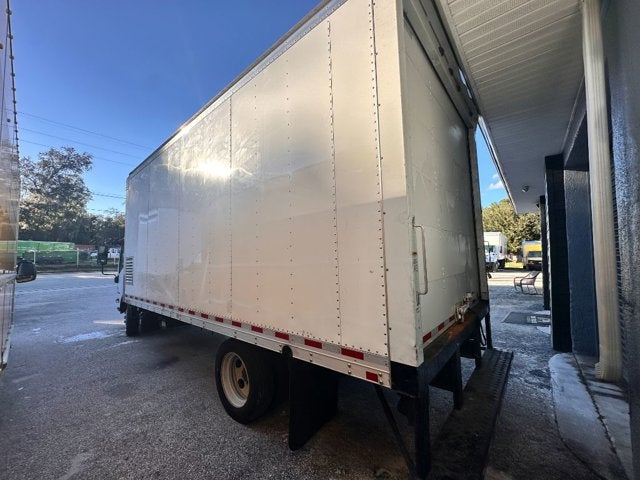

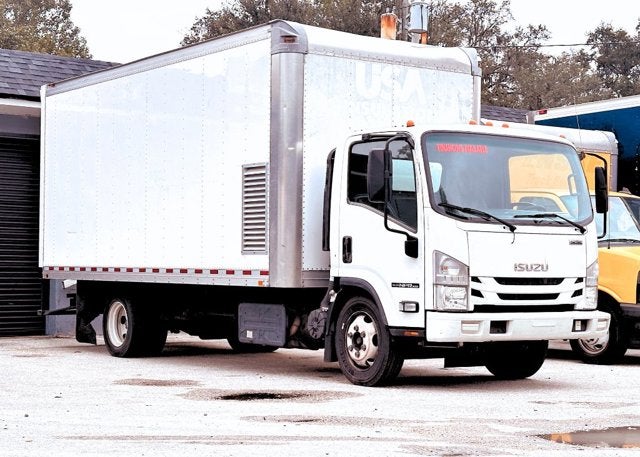

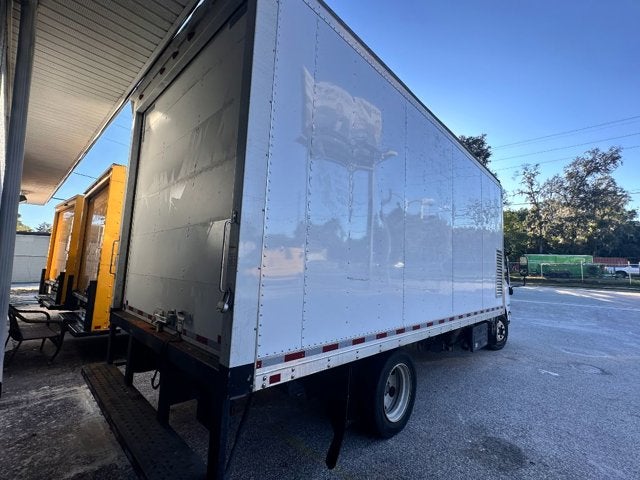

2016 ISUZU NPR 18ft. Box Truck

Visit our Store

Vehicle Information

VIN: JALC4W161G7K02014
Stock #: 1195
Model Code: NF104
  • Body Style Medium Duty
  • Exterior Color White
  • Mileage 115,800
  • Fuel Type Diesel

Highlighted Features

Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
  • Turbo Charged Engine
  • Cruise Control

All Features

  • Truck Application
  • GVWR, 14500 lbs (6577 kg) capacity
  • Air Cleaner, Dry Paper single element (Donaldson brand). Air cleaner canister standard with air restriction gauge.
  • Alternator, 140 AMP with integral regulator
  • Battery, Dual 12-V maintenance free, 750 CCA each
  • Rear wheel drive
  • Front GAWR, 5360 lbs (2431 kg) capacity
  • Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
  • Front Suspension, 6830 lbs. (3098 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.
  • Front Wheels, 16" x 6", 6-hole disc, painted white
  • Front Tires, 215/85R16E (10 ply) tubeless radial, all season
  • Rear GAWR, 9880 lbs (4481 kg) capacity
  • Rear Axle, R040, Full-floating single-speed, 11,020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
  • Rear Axle Ratio, 4.56:1
  • Rear Suspension, 9880 lbs. (4481 kg) capacity. Semi-elliptical main and auxiliary multi-leaf springs. Includes shock absorbers.
  • Rear Wheels, 16" x 6", 6-hole disc, painted white
  • Rear Tires, 215/85R16E (10 ply) tubeless radial, all season
  • Wheelbase, 109" (276.9 cm), includes ladder type channel frame. Full C section straight frame 33.5 inches (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu. in. and RBM 316,800 lb-ft/in per rail.
  • Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail through the rail fuel fill. Fuel water separator with dash mounted warning light.
  • Exhaust Brake, vacuum operated
  • Exhaust System, Single horizontal with DPF (Diesel Particulate Filter)
  • Paint Scheme, Solid
  • Cab Mounts, All steel low cab forward, BBC 70.7 in. 45 deg. mechanical tilt with torsion assist
  • Daytime running lamps
  • Windows, Tinted glass
  • Mirrors, Dual cab mounted exterior with integral convex mirror
  • Windshield Wipers, Intermittent wet-arm
  • AM/FM/CD stereo radio
  • Tricot cloth covered reclining highback driver seat with single two occupant fold down passenger seat
  • Floor mats
  • Tilt and telescoping steering column
  • Cruise control
  • Power windows & door locks
  • 4 channel anti-lock brake system
  • Daytime running lamps
  • EBD (Electronic Brake Distribution)

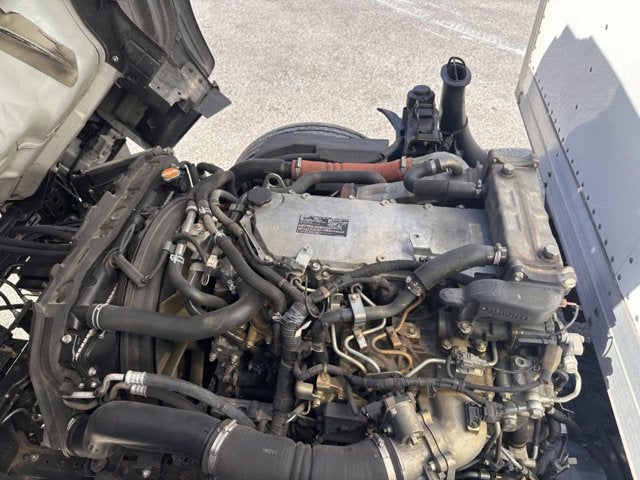

4HK1-TC, DIESEL ENGINE 317 CID (5.19L), 215 HP AT 2550 RPM: 452 FT-LB GROSS TORQUE AT 1850 RPM. 4 CYLINDER, 16 VALVE, FOUR CYCLE, OVERHEAD CAM, TURBOCHARGED, INTER-COOLED, WATER COOLED EGR VALVE, DIRECT INJECTION, ELECTRONICALLY CONTROLLED COMMON RAIL FUEL SYSTEM AND ENGINE CRUISE CONTROL.

  • Oil level check switch and light. Engine Warning system with audible warning for low oil pressure
  • high coolant temperature
  • and low coolant level. Rear engine cover. (STD)

  • Vehicle
    • Front Frame Rating: - TBD -
  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 750
    • Cold Cranking Amps @ 0° F (2nd): 750
    • Maximum Alternator Capacity (amps): 140
    • Maximum Alternator Watts: 1680
  • Cooling System
    • Total Cooling System Capacity (qts): 19.0
  • Weight Information
    • Gross Axle Wt Rating - Front (lbs): 5360
    • Gross Axle Wt Rating - Rear (lbs): 9880
    • Curb Weight - Front (lbs): 3907
    • Curb Weight - Rear (lbs): 2057
    • Gross Vehicle Weight Rating Cap (lbs): 14500
    • Gross Combined Wt Rating (lbs): 20500
  • Suspension
    • Suspension Type - Front: Tapered Leaf
    • Suspension Type - Rear: Multi-Leaf
    • Spring Capacity - Front (lbs): 6830
    • Spring Capacity - Rear (lbs): 9880
    • Axle Type - Front: Reverse I-Beam
    • Axle Type - Rear: Full-Floating
    • Axle Capacity - Front (lbs): 6830
    • Axle Capacity - Rear (lbs): 11020
    • Axle Ratio (:1) - Rear: 4.56
    • Shock Absorber Diameter - Front (mm): 42
    • Shock Absorber Diameter - Rear (mm): 42
    • Stabilizer Bar Diameter - Front (in): 1.65
  • Brakes
    • Brake Type: Power
    • Brake ABS System: 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 11.5 x 0.51
    • Drum - Rear (Yes or ): Yes
    • Rear Drum Diam x Width (in): 12.6 x 3.94
  • Tires
    • Front Tire Order Code: I5H/I69
    • Rear Tire Order Code: I5H/I34
    • Front Tire Size: 215/85R16E
    • Rear Tire Size: 215/85R16E
    • Front Tire Capacity (lbs): 5360
    • Rear Tire Capacity (lbs): 9880
    • Revolutions/Mile @ 45 mph - Front: 682.9
    • Revolutions/Mile @ 45 mph - Rear: 682.9
    • Number Of Tires Front: 2
    • Number Of Tires Rear: 4
  • Wheels
    • Front Wheel Size (in): 16 x 6
    • Rear Wheel Size (in): 16 x 6
    • Front Wheel Offset (mm): 127.0
    • Rear Wheel Offset (mm): 127.0
    • # of Bolt Holes - Front: 6
    • # of Bolt Holes - Rear: 6
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
    • Front Bolt Pattern: 6 Hole JIS 8.75"
    • Rear Bolt Pattern: 6 Hole JIS 8.75"
  • Steering
    • Steering Type: Power
    • Steering Ratio (:1), On Center: 18.8 - 20.9
    • Steering Ratio (:1), At Lock: 18.8 - 20.9
    • Turning Diameter - Curb to Curb (ft): 31.5
    • Turning Diameter - Wall to Wall (ft): 37.1
  • Frame
    • Frame Type: Ladder
    • Sect Modulus Rails Only (in³): 7.20
    • Frame RBM (N/A): 316800
    • Frame Strength (lbs): 44000
    • Frame Thickness (in): 8.5 X 2.76 X 0.24
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 30
    • Fuel Tank Location: In frame rail
  • Exterior Dimensions
    • Wheelbase (in): 109.0
    • Length, Overall w/o rear bumper (in): 200.5
    • Width, Max w/o mirrors (in): 81.3
    • Height, Overall (in): 90.8
    • Overhang, Front (in): 48.4
    • Overhang, Rear w/o bumper (in): 43.1
    • Front Bumper to Back of Cab (in): 70.7
    • Cab to Axle (in): 86.5
    • Cab to End of Frame (in): 129.6
    • Ground to Top of Frame (in): 31.1
    • Frame Width, Rear (in): 33.5
    • Ground Clearance, Front (in): 7.5
    • Ground Clearance, Rear (in): 7.5
    • Body Length Default Value (ft): 12
  • Interior Dimensions
    • Passenger Capacity: 3
    • Front Head Room (in): 38.4
    • Front Leg Room (in): 29.5
    • Front Shoulder Room (in): 70.7
    • Front Hip Room (in): 67.7
  • Summary
    • Vehicle Name: Isuzu NPR HD DSL REG AT
    • Body Style: Tilt Chassis Cab
  • Medium Duty Performance
    • Driver Ratio: 1
    • Torque @ Clutch Engage (ft-lbs): 265
    • Torque Converter: 1.764
    • Static Loaded Radius (in): 14.3
    • Max Speed For Gradeability: 76

May not represent actual vehicle. (Options, colors, trim and body style may vary)
