• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Assist handles, driver and right-front passenger
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Mirror, inside rearview manual day/night (Not available with (UVC) rear vision camera.)
• Oil life monitor
• Power outlet, 120-volt

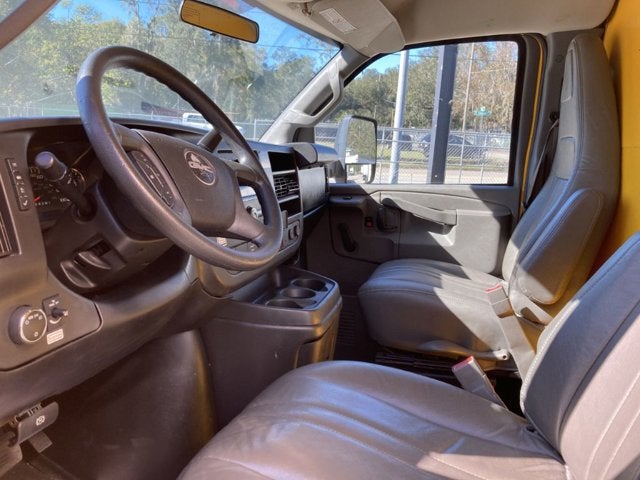

• Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
• GVWR, 12,300 lbs. (5579 kg)
• Incomplete vehicle certification
• Rear Axle, 3.73 Ratio (Requires (R05) dual rear wheel configuration.)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Daytime Running Lamps
• Hill Start Assist
• StabiliTrak, traction assistance and vehicle stability enhancement system

3500 VAN PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

SPECIAL PAINT, SOLID, ONE COLOR

• All normally body colored non-sheet metal parts will be flat Black

GMC 4G LTE

• and available built-in Wi-Fi hotspot for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first);

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

BODY, STANDARD

• (STD)

DRIVER CONVENIENCE PACKAGE

• includes Tilt-Wheel and (K34) cruise control

CONSOLE, ENGINE COVER

• with swing-out storage bin

ENHANCED TOWING PERFORMANCE PACKAGE

• GCWR increased to 19
• 000 lbs. (8618 kg). Includes (GT5) Rear axle
• 4.10 ratio.)

ENGINE, VORTEC 6.0L V8

• (341 hp [254.3 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (STD) (Includes external oil cooler.

VISORS, DRIVER AND FRONT PASSENGER, VINYL

• in lieu of standard cloth

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking
• Powertrain Grade Braking
• and Tap-Up/Tap-Down Driver Shift Control (STD)

DOOR LOCKS, POWER

• with lock-out protection

WHEEL FINISH, PAINTED WHITE.

• White-painted wheels in lieu of standard Gray-painted wheels.

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

TIRE VALVE STEMS, LONG, BRASS, FOR INSIDE DUAL REAR WHEELS

• Brass metal 3-3/8" long valve stems on the inner wheels of dual rear wheel axles for easy air inflation.

MIRROR, INSIDE REARVIEW MANUAL DAY/NIGHT

• (STD)

TIRE VALVE STEM CAPS, AIR THRU

• Air through valve caps on the tire air valves

GVWR, 12,300 LBS. (5579 KG)

• (STD)

GOVERNOR, ELECTRONIC SPEED SENSOR SET TO 75 MPH

• Provides electronic software to limit maximum road speed to 75-MPH with gasoline engine. Cruise control limited to 70 MPH.

TIRE VALVE STEMS, BRASS IN LIEU OF STANDARD

• Also included on spare when furnished

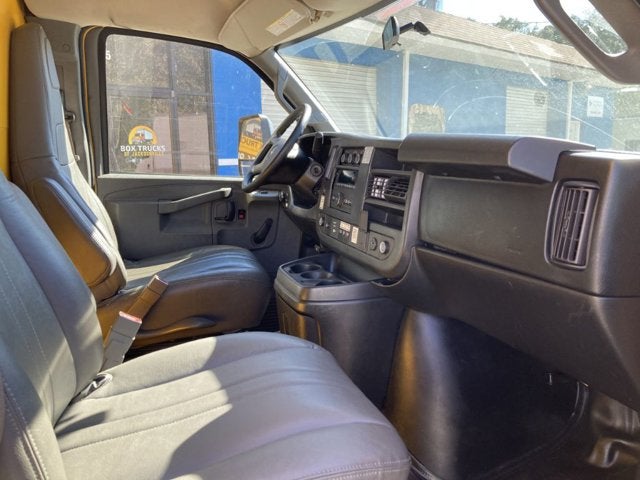

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER AND USB PORT

• includes seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers

• ONSTAR AND GMC CONNECTED SERVICES CAPABLE;
• CRUISE CONTROL
• 3500 VAN PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SPECIAL PAINT SOLID ONE COLOR All normally body colored non-sheet metal parts will be flat Black
• GMC 4G LTE and available built-in Wi-Fi hotspot for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first);
• REAR AXLE 4.10 RATIO
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC). Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle
• BODY STANDARD (STD)
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• CONSOLE ENGINE COVER with swing-out storage bin
• ENHANCED TOWING PERFORMANCE PACKAGE GCWR increased to 19 000 lbs. (8618 kg). Includes (GT5) Rear axle 4.10 ratio.)
• ENGINE VORTEC 6.0L V8 (341 hp [254.3 kW] @ 5400 rpm 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (STD) (Includes external oil cooler.
• MEDIUM PEWTER VINYL SEAT TRIM
• VISORS DRIVER AND FRONT PASSENGER VINYL in lieu of standard cloth
• FUEL FILL CAP WITH STAINLESS STEEL TETHER IN LIEU OF THE STANDARD PLASTIC TETHER
• AUDIO SYSTEM FEATURE USB PORT
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD)
• DOOR LOCKS POWER with lock-out protection
• WHEEL FINISH PAINTED WHITE. White-painted wheels in lieu of standard Gray-painted wheels.
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• SPECIAL PAINT
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• TIRE VALVE STEMS LONG BRASS FOR INSIDE DUAL REAR WHEELS Brass metal 3-3/8" long valve stems on the inner wheels of dual rear wheel axles for easy air inflation.
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT (STD)
• TIRE VALVE STEM CAPS AIR THRU Air through valve caps on the tire air valves
• GVWR 12 300 LBS. (5579 KG) (STD)
• GOVERNOR ELECTRONIC SPEED SENSOR SET TO 75 MPH Provides electronic software to limit maximum road speed to 75-MPH with gasoline engine. Cruise control limited to 70 MPH.
• COOLANT RECOVERY BOTTLE WITH NO-LOSS TETHERED CAP
• TIRE VALVE STEMS BRASS IN LIEU OF STANDARD Also included on spare when furnished
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER AND USB PORT includes seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Dual Rear Wheels
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Dual Rear Wheels
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Bucket Seats
• A/C
• Vinyl Seats
• Bucket Seats
• Power Outlet
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• Daytime Running Lights
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 8600
• Curb Weight - Front (lbs): 3146
• Curb Weight - Rear (lbs): 1883
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Gross Combined Wt Rating (lbs): 19000
• Gross Combined Wt Rating (lbs): 16000
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 8600
• Axle Ratio (:1) - Rear: 4.10
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Tires
• Front Tire Order Code: XHF
• Rear Tire Order Code: YHF
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 2335
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 177
• Length, Overall w/o rear bumper (in): 284.8
• Width, Max w/o mirrors (in): 94.53
• Height, Overall (in): 82.9
• Overhang, Front (in): 39.7
• Front Bumper to Back of Cab (in): 98.7
• Cab to Axle (in): 118
• Cab to End of Frame (in): 186.5
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.8
• Ground Clearance, Front (in): 7.6
• Ground Clearance, Rear (in): 7
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Summary

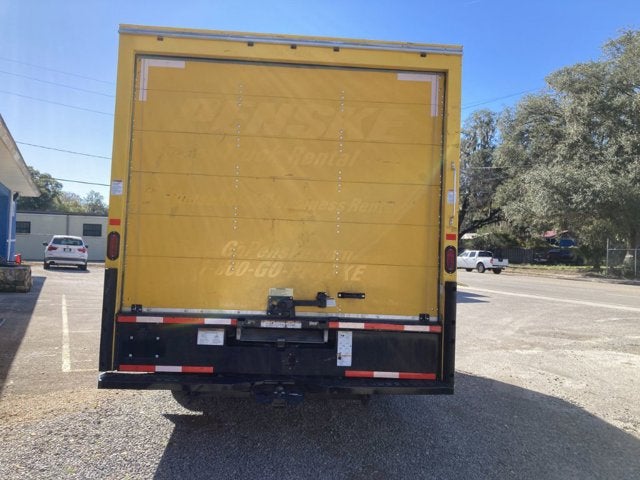

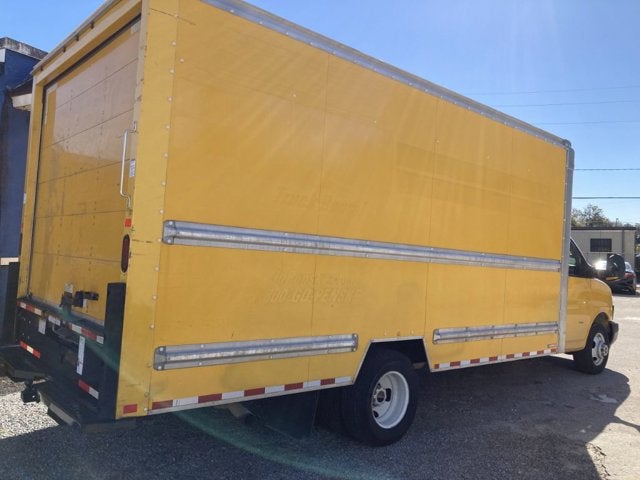

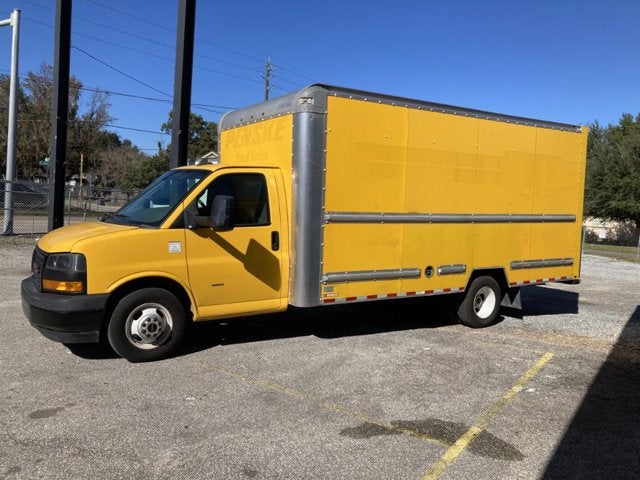

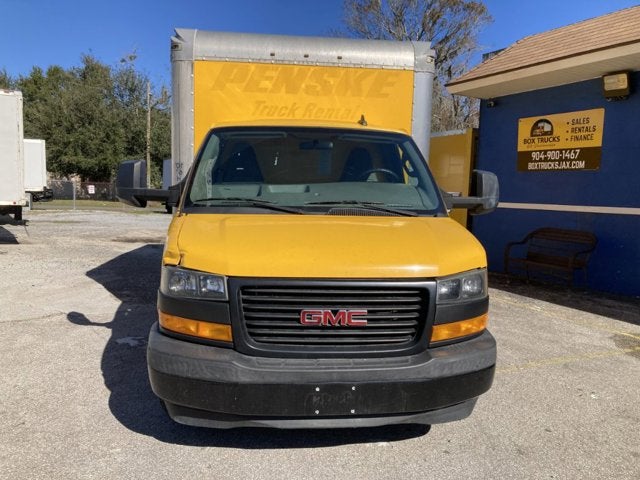

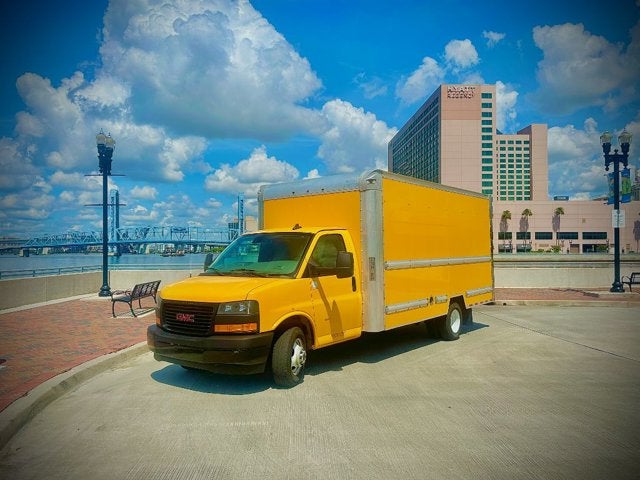

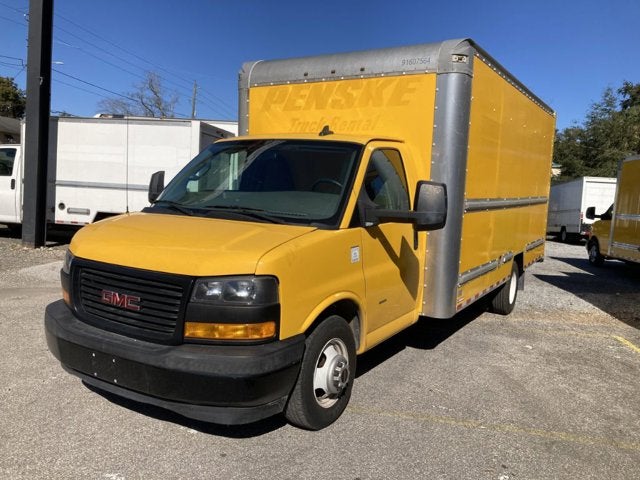

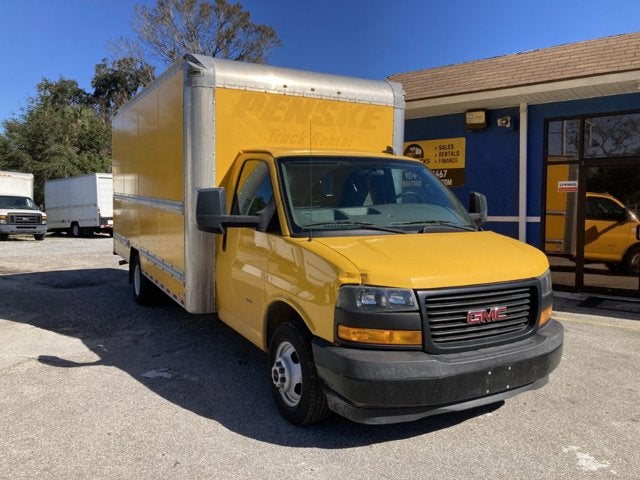

• Vehicle Name: GMC Savana Commercial Cutaway
• Body Style: 177.0" WB
• Body Code: ZW9
